어찌하다 보니 된다. 물론 참고한 페이지가 있다.

https://satyajitpatnaik.medium.com/multipartfile-uploads-from-a-reactjs-ui-to-a-spring-boot-service-fdaeef9743dc

MultipartFile uploads from a ReactJS UI to a Spring Boot service

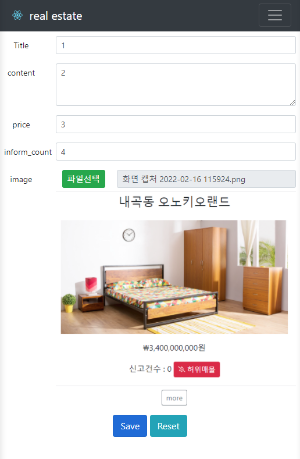

그림 1처럼 React로 UI를 만들고 파일 선택시 이미지가 바로 보여지게 하고, Save를 눌렀을때 axios를 통해 SpringBoot의 Controller로 전송.

Controller에선 @PostMapping을 통해 @RequestPart로 file이외의 param도 받고 싶었다. 중요한 것은 UI에서 전송할때 multipart로 보내니 file이외의 parameter도 blob처리를 해서 보내고 받으면 된다는 것이었다.

그림 1

다음은 React UI로 테스트라 useState를 썼다.

useRef hook을 살펴보자. current 속성을 가지는 object를 반환한다. current를 변경해도 re-rendering되지 않는다.

또, DOM이나 React element에 직접 접근할때도 사용한다. 여기서는 file type의 input에 직접 접근하여 click이벤트를 발생시키는데 사용하였다.jquery에선 어떻게 했더라..생각이 안남..블로그 어딘가 있을텐데..^^;

import {Button, Col, Form, Row} from "react-bootstrap";
import {useRef, useState} from "react";
import axios from "axios";
import {saveUrl} from "../data";


const New = () => {

    const [formField, setFormField] = useState({title: '', content: '', price: '0', inform_count: '0', file_name: '', file_path: '', file_type: ''});
    const uploadFile = useRef(null);

    const resetField = (e) => {
        setFormField({title: '', content: '', price: '0', inform_count: '0', file_name: '', file_path: '', file_type: ''});
    }

    const fieldChange = (e) => {
        let id = e.target.id;
        if (id === "title") {
            setFormField(Object.assign({}, formField, {title: e.target.value}));
        } else if (id === "content") {
            setFormField(Object.assign({}, formField, {content: e.target.value}));
        } else if (id === "price") {
            setFormField(Object.assign({}, formField, {price: e.target.value}));
        } else if (id === "inform_count") {
            setFormField(Object.assign({}, formField, {inform_count: e.target.value}));
        } else if (id === "uploadFile") {
            console.log(e);
            if (e.target.files.length > 0) {
                let file = e.target.files[0];
                let fileNam = file.name;
                let fileTyp = file.type;
                let reader = new FileReader();
                reader.readAsDataURL(file);
                reader.onload = (e) => {
                    let image = reader.result;
                    setFormField(Object.assign({}, formField, {file_name: fileNam, file_path: image, file_type: fileTyp}));
                }
            } else {
                setFormField(Object.assign({}, formField, {file_name: '', file_path: '', file_type: ''}));
            }
        }
        console.log(formField);
    }
    const uploadClick = (e) => {
        uploadFile.current.click();
    };

    const saveData = (e) => {
        console.log(e);
        let formData = new FormData();
        let file;
        fetch(formField.file_path)
            .then(result => result.blob())
            .then(blob => {
                file = new File([blob], formField.file_name, {type: formField.file_type});
                //file.type = formField.file_type;
                formData.append("photo", file);
                return formData;
            })
            .then(formData => {
                let tmpData = Object.assign({},formField);
                delete tmpData.file_path;
                formData.append('roomDTO', new Blob([JSON.stringify(tmpData)],{type:'application/json'}));
                axios.post(saveUrl, formData, {
                    headers: {
                        'contentType': 'multipart/form-data',
                        'processData': false,
                        'cache': false
                    }
                }).then((response) => {
                    console.log(response);
                }).catch((reason) => {
                    console.log(reason);
                });
            })
            .catch(reason => {
                console.log(reason);
            });
    };

    return (
        <>
            <div className={'m-2'}>
                <Form>
                    <Form.Group controlId={'title'} as={Row}>
                        <Form.Label column={"sm"} xs={2}>Title</Form.Label>
                        <Col xs={10}>
                            <Form.Control type={'text'} size={"sm"} placeholder={'input title'} name={"title"} value={formField.title || ''}
                                          onChange={fieldChange}/>
                        </Col>
                    </Form.Group>
                    <Form.Group controlId={'content'} as={Row}>
                        <Form.Label column={"sm"} xs={2}>content</Form.Label>
                        <Col xs={10}>
                            <Form.Control as={"textarea"} rows={3} size={"sm"} placeholder={'input content'} name={"content"}
                                          value={formField.content || ''} onChange={fieldChange}/>
                        </Col>
                    </Form.Group>
                    <Form.Group controlId={'price'} as={Row}>
                        <Form.Label column={"sm"} xs={2}>price</Form.Label>
                        <Col xs={10}>
                            <Form.Control type={'number'} size={"sm"} name={"price"} min={0} value={formField.price || ''}
                                          onChange={fieldChange}/>
                        </Col>
                    </Form.Group>
                    <Form.Group controlId={'inform_count'} as={Row}>
                        <Form.Label column={"sm"} xs={2}>inform_count</Form.Label>
                        <Col xs={10}>
                            <Form.Control type={'number'} size={"sm"} name={"inform_count"} min={0} value={formField.inform_count || ''}
                                          onChange={fieldChange}/>
                        </Col>
                    </Form.Group>
                    <Form.Group controlId={'image'} as={Row}>
                        <Form.Label column={"sm"} xs={2}>image</Form.Label>
                        <Col xs={10}>
                            <Form.Row>
                                <Col xs={3}>
                                    <Button variant={'success btn-sm'} onClick={uploadClick}>파일선택</Button>
                                </Col>
                                <Col xs={"9"}>
                                    <Form.Control type={'input'} size={"sm"} name={"image"} readOnly={true}
                                                  value={formField.file_name || ''}/>
                                </Col>
                                {/*<Form.Control type={'file'} id={"uploadFile"} ref={uploadFile} style={{display:'none'}} key={fileImage.name||''} onChange={fieldChange}/>*/}
                                <Form.File id={"uploadFile"} ref={uploadFile} style={{display: 'none'}} key={formField.file_path || ''}
                                           onChange={fieldChange}/>
                            </Form.Row>
                            {
                                formField && (
                                    <div>
                                        <img src={formField.file_path} alt={formField.file_name} className={"w-100 border-0"} />
                                    </div>
                                )
                            }
                        </Col>
                    </Form.Group>
                    <Button variant={"primary"} type={"button"} onClick={saveData}>Save</Button>{` `}<Button variant={"info"}
                                                                                                             onClick={resetField}>Reset</Button>
                </Form>
            </div>
        </>
    )
}

export default New;

업로드 디렉토리를 uploads로 정하고 리소스설정을 했다.

package com.dbility.apps.dev.test;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.multipart.commons.CommonsMultipartResolver;
import org.springframework.web.servlet.config.annotation.CorsRegistry;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@Configuration
public class WebConfig implements WebMvcConfigurer {

    @Override
    public void addCorsMappings(CorsRegistry registry) {
        registry.addMapping("/**")
                .allowedMethods("GET","POST")
                .allowedOrigins("http://localhost:3000")
                .allowCredentials(true);
    }

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        WebMvcConfigurer.super.addInterceptors(registry);
    }


    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/uploads/**")
                .addResourceLocations("file:uploads/")
                .setCachePeriod(20);
    }

    @Bean
    public CommonsMultipartResolver multipartResolver(){
        CommonsMultipartResolver commonsMultipartResolver = new CommonsMultipartResolver();
        commonsMultipartResolver.setDefaultEncoding("UTF-8");
        commonsMultipartResolver.setMaxUploadSize(5*1024*1024);//5M
        commonsMultipartResolver.setMaxUploadSizePerFile(5*1024*1024);
        commonsMultipartResolver.setMaxInMemorySize(0);
        return commonsMultipartResolver;
    }
}

다음은 DTO와 Spring Boot Controller다.

package com.dbility.apps.dev.test;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

@Builder
@AllArgsConstructor
@NoArgsConstructor
@Data
public class RoomDTO {

    private String title;
    private String content;
    private String price;
    private String inform_count;
    private String file_name;
    private String file_type;

}

package com.dbility.apps.dev.test;

import lombok.extern.slf4j.Slf4j;
import org.springframework.http.MediaType;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

@Slf4j
@RestController
public class RoomsController {

    @Resource(name="roomsService")
    private RoomsService roomsService;

    //@CrossOrigin(origins = "http://localhost:3000")
    @GetMapping(value = "/findall")
    public List<RoomDTO> getRooms() throws Exception {
        return roomsService.findAll();
    }

    @PostMapping(value = "/save",consumes = {MediaType.APPLICATION_JSON_VALUE,MediaType.MULTIPART_FORM_DATA_VALUE},headers = {"Content-Type=multipart/form-data"})
    public Map<String,Object> save(@RequestPart(value = "roomDTO") RoomDTO roomDTO,
                                   @RequestPart(value="photo",required = false) MultipartFile photoFile,
                                   HttpServletRequest request) throws Exception {
        log.info("{}",roomDTO);
        log.info("{}",photoFile.getName());
        int retVal = roomsService.insertData(roomDTO,photoFile,request);
        Map<String, Object> rtMap = new HashMap<>();
        rtMap.put("SUCCESS",0);
        return rtMap;
    }

}

실제 업로드처리를 할 서비스다. 이렇게 하는게 맞는지는 나중에 알아봐야겠다.

package com.dbility.apps.dev.test;

import lombok.extern.slf4j.Slf4j;
import org.modelmapper.ModelMapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.web.multipart.MultipartFile;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import java.io.BufferedOutputStream;
import java.io.File;
import java.io.FileOutputStream;
import java.time.LocalDateTime;
import java.util.List;
import java.util.stream.Collectors;

@Slf4j
@Service("roomsService")
public class RoomsServiceImpl implements RoomsService {

    @Resource(name = "roomsRepository")
    private RoomsRepository roomsRepository;

    @Autowired
    private ModelMapper modelMapper;

    @Override
    public List<RoomDTO> findAll() throws Exception {
        log.info("{}", LocalDateTime.now());
        List<RoomsEntity> roomList = roomsRepository.findAll();
        List<RoomDTO> roomDtoList = roomList.stream().map(room -> modelMapper.map(room, RoomDTO.class)).collect(Collectors.toList());
        return roomDtoList;
    }

    @Transactional
    @Override
    public int insertData(RoomDTO roomDTO, MultipartFile photoFile, HttpServletRequest request) throws Exception {

        int retVal = 0;
        //String uploadDir = request.getSession().getServletContext().getRealPath("/") +"static"+File.separator+"resources"+File.separator+"images";

        String uploadDir = "uploads"+File.separator+"images";
        log.info("{}", uploadDir);
        if (!photoFile.isEmpty()) {
            if (!photoFile.getOriginalFilename().isEmpty()) {
                try {
                    log.info("{}, {}", photoFile.getName(), photoFile.getOriginalFilename());
                    byte[] bytes = photoFile.getBytes();
                    File dir = new File(uploadDir);
                    if(!dir.exists()){
                        dir.mkdirs();
                    }
                    File uploadFile = new File(dir.getAbsolutePath()+File.separator+ photoFile.getOriginalFilename());
                    BufferedOutputStream uploadStream = new BufferedOutputStream(new FileOutputStream(uploadFile));
                    uploadStream.write(bytes);
                    uploadStream.close();

                    roomDTO.setFile_name("images/"+roomDTO.getFile_name());
                    RoomsEntity roomsEntity = modelMapper.map(roomDTO, RoomsEntity.class);

                    Object obj = roomsRepository.saveAndFlush(roomsEntity);
                    log.info("{}",obj);
                    if(!obj.equals(null)){
                        retVal = 1;
                    }

                } catch (Exception e) {
                    e.printStackTrace();
                    retVal = -1;
                }
            }
        }

        return retVal;
    }
}

Save를 눌러 저장을 실행하면 Back-End log가 다음과 같이 남는다.

13:28:57.196 [http-nio-9090-exec-6] INFO         c.d.apps.dev.test.RoomsController   31 - RoomDTO(title=1, content=2, price=3, inform_count=4, file_name=화면 캡처 2022-02-16 115924.png, file_type=image/png)
13:28:57.196 [http-nio-9090-exec-6] INFO         c.d.apps.dev.test.RoomsController   32 - photo
13:28:57.196 [http-nio-9090-exec-6] DEBUG         o.h.e.t.internal.TransactionImpl   53 - On TransactionImpl creation, JpaCompliance#isJpaTransactionComplianceEnabled == false
13:28:57.196 [http-nio-9090-exec-6] DEBUG         o.h.e.t.internal.TransactionImpl   81 - begin
13:28:57.196 [http-nio-9090-exec-6] INFO        c.d.apps.dev.test.RoomsServiceImpl   45 - uploads\images
13:28:57.197 [http-nio-9090-exec-6] INFO        c.d.apps.dev.test.RoomsServiceImpl   49 - photo, 화면 캡처 2022-02-16 115924.png
13:28:57.199 [http-nio-9090-exec-6] DEBUG     org.hibernate.engine.spi.ActionQueue  281 - Executing identity-insert immediately
13:28:57.200 [http-nio-9090-exec-6] DEBUG                        org.hibernate.SQL  144 -
    insert
    into
        rooms
        (id, content, file_name, file_type, inform_count, price, title)
    values
        (null, ?, ?, ?, ?, ?, ?)
Hibernate:
    insert
    into
        rooms
        (id, content, file_name, file_type, inform_count, price, title)
    values
        (null, ?, ?, ?, ?, ?, ?)
13:28:57.200 [http-nio-9090-exec-6] TRACE      o.h.type.descriptor.sql.BasicBinder   64 - binding parameter [1] as [VARCHAR] - [2]
13:28:57.200 [http-nio-9090-exec-6] TRACE      o.h.type.descriptor.sql.BasicBinder   64 - binding parameter [2] as [VARCHAR] - [images/화면 캡처 2022-02-16 115924.png]
13:28:57.200 [http-nio-9090-exec-6] TRACE      o.h.type.descriptor.sql.BasicBinder   64 - binding parameter [3] as [VARCHAR] - [image/png]
13:28:57.200 [http-nio-9090-exec-6] TRACE      o.h.type.descriptor.sql.BasicBinder   64 - binding parameter [4] as [INTEGER] - [4]
13:28:57.201 [http-nio-9090-exec-6] TRACE      o.h.type.descriptor.sql.BasicBinder   64 - binding parameter [5] as [BIGINT] - [3]
13:28:57.201 [http-nio-9090-exec-6] TRACE      o.h.type.descriptor.sql.BasicBinder   64 - binding parameter [6] as [VARCHAR] - [1]
13:28:57.201 [http-nio-9090-exec-6] DEBUG         o.h.id.IdentifierGeneratorHelper   78 - Natively generated identity: 5
13:28:57.201 [http-nio-9090-exec-6] DEBUG   o.h.r.j.i.ResourceRegistryStandardImpl  106 - HHH000387: ResultSet's statement was not registered
13:28:57.202 [http-nio-9090-exec-6] DEBUG    o.h.e.i.AbstractFlushingEventListener  140 - Processing flush-time cascades
13:28:57.202 [http-nio-9090-exec-6] DEBUG    o.h.e.i.AbstractFlushingEventListener  193 - Dirty checking collections
13:28:57.202 [http-nio-9090-exec-6] DEBUG    o.h.e.i.AbstractFlushingEventListener  114 - Flushed: 0 insertions, 0 updates, 0 deletions to 1 objects
13:28:57.202 [http-nio-9090-exec-6] DEBUG    o.h.e.i.AbstractFlushingEventListener  121 - Flushed: 0 (re)creations, 0 updates, 0 removals to 0 collections
13:28:57.202 [http-nio-9090-exec-6] DEBUG          o.h.internal.util.EntityPrinter  110 - Listing entities:
13:28:57.202 [http-nio-9090-exec-6] DEBUG          o.h.internal.util.EntityPrinter  117 - com.dbility.apps.dev.test.RoomsEntity{file_name=images/화면 캡처 2022-02-16 115924.png, file_type=image/png, price=3, inform_count=4, id=5, title=1, content=2}
13:28:57.202 [http-nio-9090-exec-6] INFO        c.d.apps.dev.test.RoomsServiceImpl   64 - RoomsEntity(id=5, title=1, content=2, price=3, inform_count=4, file_name=images/화면 캡처 2022-02-16 115924.png, file_type=image/png)
13:28:57.203 [http-nio-9090-exec-6] DEBUG         o.h.e.t.internal.TransactionImpl   98 - committing
13:28:57.203 [http-nio-9090-exec-6] DEBUG    o.h.e.i.AbstractFlushingEventListener  140 - Processing flush-time cascades
13:28:57.203 [http-nio-9090-exec-6] DEBUG    o.h.e.i.AbstractFlushingEventListener  193 - Dirty checking collections
13:28:57.203 [http-nio-9090-exec-6] DEBUG    o.h.e.i.AbstractFlushingEventListener  114 - Flushed: 0 insertions, 0 updates, 0 deletions to 1 objects
13:28:57.203 [http-nio-9090-exec-6] DEBUG    o.h.e.i.AbstractFlushingEventListener  121 - Flushed: 0 (re)creations, 0 updates, 0 removals to 0 collections
13:28:57.203 [http-nio-9090-exec-6] DEBUG          o.h.internal.util.EntityPrinter  110 - Listing entities:
13:28:57.203 [http-nio-9090-exec-6] DEBUG          o.h.internal.util.EntityPrinter  117 - com.dbility.apps.dev.test.RoomsEntity{file_name=images/화면 캡처 2022-02-16 115924.png, file_type=image/png, price=3, inform_count=4, id=5, title=1, content=2}
